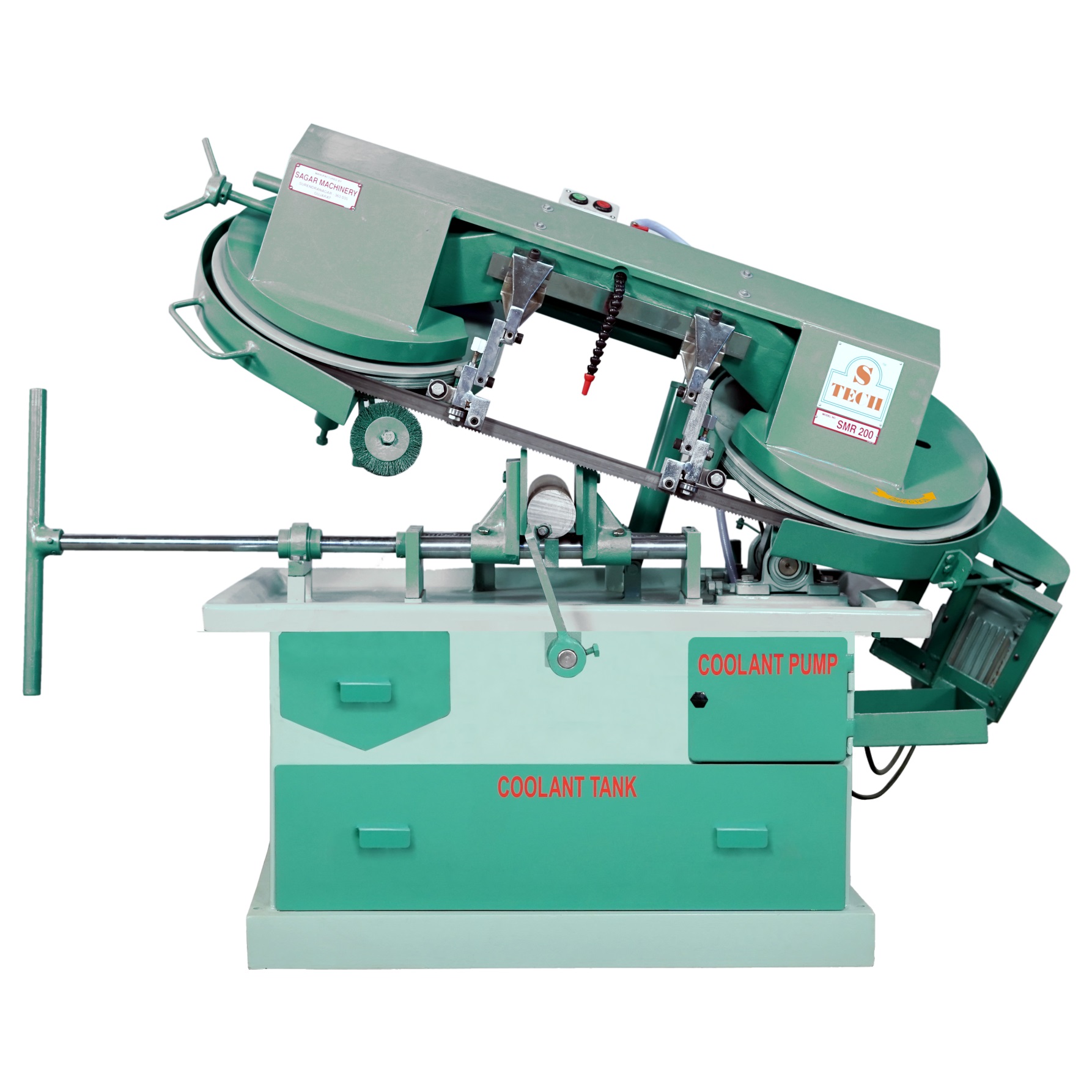

Technical Specifications - SMR200
|
Model
|
SMR 200
|
|
Cutting Cap.- Round (mm)
|
200
|
|
Cutting Cap. - Square (mm)
|
150 x 150
|
|
Motor
|
1 HP, 1440 RPM
|
|
Coolant Pump
|
0.15 HP, 2800 RPM
|
|
Drive
|
Helical Gear Pinion
|
|
V-Belt Size
|
A35
|
|
Blade Size (mm)
|
3000 x 27 x 0.9
|
|
Blade Speed (mtr/min)
|
37-52-70
|
|
Weight (kg)
|
315
|
|
Dimensions L x W x H (mm)
|
1700 x 740 x 1070
|
Salient Features
- All metals ranging from very soft to very hard like copper, brass, aluminium, mild steel, alloy steel, stainless steel, tool steel can be cut very easily.
- Can cut various sections including round, flat, angle, channel, pipes etc.
- Efficient hydraulic operated vice to hold the workpiece firmly.
- Precise and easy hydraulic feed control.
- Bi-Metal blade gives faster, smoother and accurate cutting.
- Adjustable chrome plated guide units.
- Auto machine off at the end of cut.
- Low noise operation.
- Spring tension to adjust the load of saw arm which facilitates the ease of operation for various size and types of metals.
- Auto operated coolant pump.
- 6 months of warranaty against any manufacturing defects.
